ASME BPE 3/4" Multi port Donjoy Sanitary Diaphragm Valve For Pharmacy Vaccine

Nama Merek:	Donjoy
Nomor Model:	G1.1
Jumlah Pesanan Minimum:	Negotiation
harga:	Bisa dinegosiasikan
Rincian kemasan:	carton box
Ketentuan Pembayaran:	T/T, LC, Credit Card

Informasi Rinci

Deskripsi produk

Informasi Rinci

Place of Origin:

China

Sertifikasi:

CE,3A,FDA

Materials:

SS316L / 1.4404

Size:

1/4"-3/4"

Operation:

Plastic Handle

Connection:

Weld

Gasket:

EPDM + PTFE

MOQ:

1PC

Supply Ability:

20 sets 30 working days

Menyoroti:

ASME 3/4" Sanitary Diaphragm Valve

Pharmacy Vaccine Sanitary Diaphragm Valve

Plastic Handle Sanitary Diaphragm Valve

Deskripsi produk

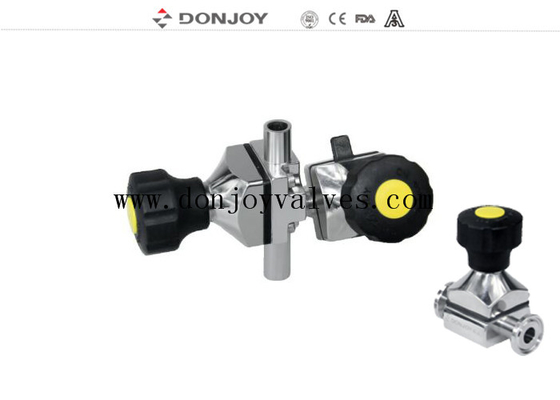

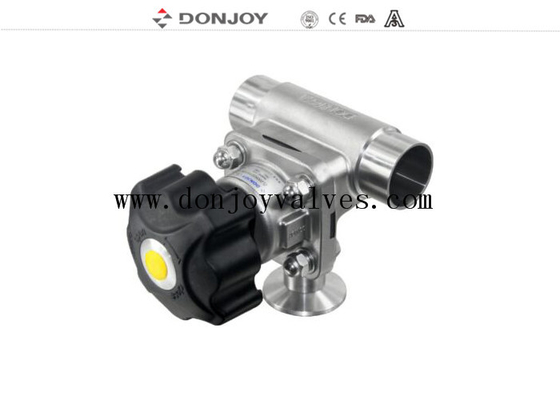

ASME BPE 3/4" Multi port Donjoy Sanitary Diaphragm Valve For Pharmacy Vaccine

Product Name:	Donjoy Multi Port Diaphragm valve
Valve Body Material:	SS316L
Seal Material:	PTFE + EPDM (double layer) / EPDM / SILICON / FPM (VITON)
Max Working Pressure:	10Bar
Max.Working Temperature:	120 degree C
Available size:	1/4”-4”, DN6-DN100
Available connection:	Clamp/weld/thread/special connection
Available standard:	3A/BPE/DIN/ISO/IDF
Operated:	Manual,Pneumatic
Available structure:	Straight, tee, U-type, tank bottom
Control:	Smart valve positioner / C-TOP control / position sensor
Certificate:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600
Application scope:	Dairy,food, beverage, pharmacy, cosmetic, etc
Feature:	Suitable for Tee / L - type / direct way / multi - port
Combined valve:	Could be with each kind of diaphragm valve

escription
Various configuration of Diaphragm valve
1.Didaphragm valve with Pisitioner / Process Controller (IL-TOP)
2.Diaphragm valve with Control Unit (C-Top)
3.Valve position Regulator
4.Position Sensor Module
5.Plastic Handle
6.Stainless steel handle
7.Stianless steel acutor
8.Electric Diaphragm valve
9.Plastic Actuator
10.Body: Casting / Forging

Diffrent welding combinations of host valve for application

GPM Valve

Mainly used in high pure water or other distribution system of water point vertical tube road, which can effectively reduce pipeline deadleg. One of the valve placed in a vertical position the export is a no bacterial breeding or process cross infection sample mouth when the valve open

SAP Valve

Mainly used in a horizontal pipeline system, host valve placed in a horizontal position, and maintain a certain self-emptying angle, the passage hole in the lowest diacharge point of the host valve waterway.

ASME BPE 3/4" Multi port Donjoy Sanitary Diaphragm Valve For Pharmacy Vaccine 0

Drawing of Mini Diaphragm valve
