316L Stainless Steel Hygienic Tank Diaphragm Valve For Pharmacy

Nama Merek:	Donjoy
Nomor Model:	NO.Vgj210s1
Jumlah Pesanan Minimum:	Negotiation
harga:	Bisa dinegosiasikan
Rincian kemasan:	carton box
Ketentuan Pembayaran:	T/T, LC, Credit Card

Informasi Rinci

Deskripsi produk

Informasi Rinci

Place of Origin:

China

Sertifikasi:

CE,3A,FDA

Product Name:

Tank bottom diaphragm valve

Materials:

SS316L / 1.4404

Size:

3/4"-2.5"

Connection:

Threaded ( BSP / BSPT / NPT ),clamp,weld

Gasket:

Sillcone / EPDM

Manual:

SS hand wheel , plastic hand wheel

Pneumatic:

SS actuator , plastic actuator

Menyoroti:

Hygienic Tank Diaphragm Valve

316L Stainless Steel Diaphragm Valve

Pharmacy Sanitary Diaphragm Valve

Deskripsi produk

SS316L stainless steel hygienic tank bottom diaphragm valve

Radial diaphragm valve are mainly manual and pneumatic operations, Inside body finished Ra≤ 0.5μm, in order to meet the requirement of biophamaceutical industry.

Specifications

Product Name:	Tank bottom diaphragm valve
Valve Body Material:	SS316L
Seal Material:	EPDM
Max Working Pressure:	6Bar
Max.Working Temperature:	-10 to 120 degree
Available size:	3/4"-2.5",DN20-DN65
Available connection:	Clamp / welding / thread / special connection
Available standard:	3A / BPE / DIN / ISO / IDF
Operation	Manual, pneumatic
Certificate:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600
Application scope:	Dairy,food, beverage, pharmacy, cosmetic, etc

●Mainly used in pharmaceutical, biotechnology, health care, cosmetics and food industry etc.
●In the pharmaceutical industry, the valve can be used as process control valves, dosing valves, sampling valves and sterile drain valve, etc.
●In the food industry, the valve is often used as the guiding device, such as sampling valve, dosing valve (such as adding CO2/Nitrogen to beer, add seasoning to drink). Radial diaphragm valves, mainly manual and pneumatic valve body, internal polished finish Ra is less than or equal to 0.5um, to meet the requirements of bio pharmaceutical industry.
●Size:3/4"-2.5",DN20-DN65
●Working temperature:-10℃-120℃(EPDM/Silcon)
●Max.Pressure:6bar
●operation:Manual / pneumatic interchangeable
●Operating Pressure:5bar-6bar
●Outlet connection: Clamp, weld,Special interface
●New diaphragm design
●Maintenance is simple, safe, easy to operate
●Self emptying function
●Dead angle minimization
●Excellent value KV
●CIP/SIP Sterilizing and cleaning

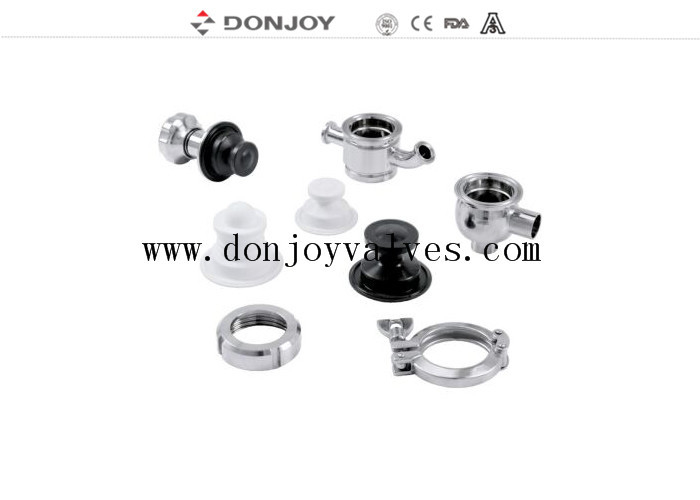

316L Stainless Steel Hygienic Tank Diaphragm Valve For Pharmacy 0
Product drawing

Relation Products

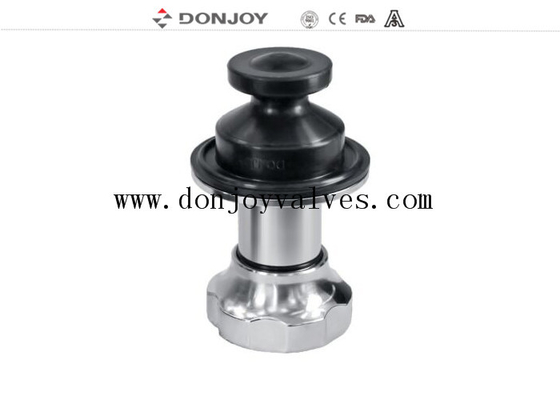

316L Stainless Steel Hygienic Tank Diaphragm Valve For Pharmacy 2

Tags : Diaphragm valve, Saniary valves, Donjoy Valves , tank bottom valve
