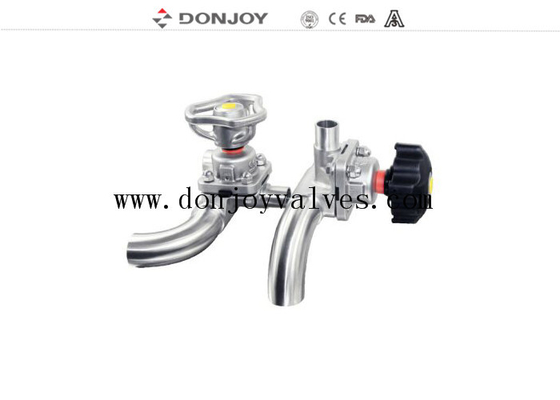

U Type Sanitary Diaphragm Valve For Vaccine Processing

Nama Merek:	Donjoy
Nomor Model:	NO.T-H
Jumlah Pesanan Minimum:	Negotiation
harga:	Bisa dinegosiasikan
Rincian kemasan:	carton box
Ketentuan Pembayaran:	T/T, LC, Credit Card

Informasi Rinci

Deskripsi produk

Informasi Rinci

Place of Origin:

China

Sertifikasi:

CE,3A,FDA

Product Name:

Pneumatic radial diaphramg valve with cylindrical port

Conveying port:

1 or 2

Logo:

Donjoy or customized

Feature:

Regulating fluid

Position of actuator:

Be downward

Max pressure:

6bar

Menyoroti:

U Type Sanitary Diaphragm Valve

Vaccine Processing Sanitary Diaphragm Valve

Pneumatic Sanitary Diaphragm Valve

Deskripsi produk

U type sanitary diaphragm valve for vaccine processing

Specifications

Product Name:	Pneumatic Radial Diaphragm Valve for phamacy hygienic process
Valve Body Material:	SS316L
Seal Material:	Single sillcone gasket/ Adhesive PTFE+EPDM/Two pieces PTFE+EPDM
MaxWorking Pressure:	6 Bar
Max.Working Temperature:	120 degree C
Availably size:	3/4''-2.5'', DN20-DN65
Availably connection:	Clamp/weld/thread/special connection
Availably standard:	3A/BPE/DIN/ISO/IDF
Operated:	Manual,Pneumatic
Availably structure:	Straight, tee, U-type, tank bottom
Control:	Smart valve positioner / C-TOP control / position sensor
Certificate:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600
Application scope:	Dairy,food, beverage, pharmacy, cosmetic, etc
Logo of product:	With "DONJOY" or customized
Combination of valve and actuator:	Flexible combination on valve body

Description
Various configuration of Diaphragm valve
1.      Didaphragm valve with Pisitioner/Process Controller(IL-TOP)
2.      Diaphragm valve with Control Unit(C-Top)
3.      Valve position Regulator
4.      Position Sensor Module
5.      Plastic Handle
6.      Stainless steel handle
7.      Stianless steel acutor
8.      Electric Diaphragm valve
9.      Plastic Acutor

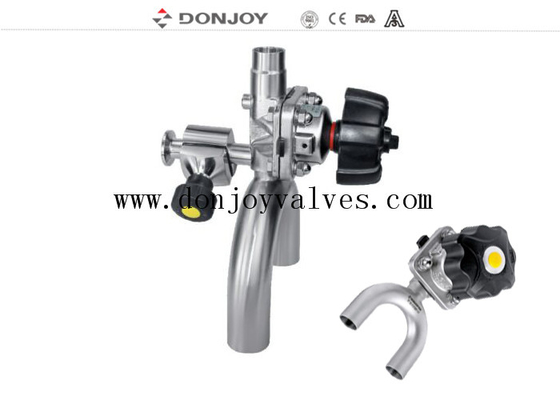

U Type Sanitary Diaphragm Valve For Vaccine Processing 0
Certificate
3A / 54-02 (1580), PED / 97 / 23 / EC, FDA. 177. 2600

Diaphragm valve Gasket
1. EPDM/ Silicone
2.EPDM+PTFE Ahersive
3.EPDM/EPDM Seperate

Product drawing
Valve Body

Surface Ra

Body :
Casting/ Forging
U Type Sanitary Diaphragm Valve For Vaccine Processing 5
Working Princple

Curve

Packaging
Bubble pack for each valve. Outside packing are carton or plywood cases.
Or as per the request of customers.

Delivery
Usually within 20 days after receiving T/T down payment.
