DONJOY High quality Intelligent valve Positioner feedback snart head F-top for pneumatic valve PNP DC24V

Nama Merek:	DONJOY
Nomor Model:	F-TOP 1553
Jumlah Pesanan Minimum:	Negotiation
harga:	US $600 - 1,000 / Piece
Rincian kemasan:	carton box
Ketentuan Pembayaran:	T/T, LC, Credit Card

Informasi Rinci

Deskripsi produk

Informasi Rinci

Place of Origin:

CHINA

Sertifikasi:

CE,3A,FDA

Product Name:

Control head

Power:

DC.24V

Pneumatic pressure:

4-7bar

Level of protection:

IP67

Operation:

Pneumatic

Working pressure:

10bar

Stroke:

Min. 3mm

Menyoroti:

pneumatic valve positioner

digital valve positioner

Deskripsi produk

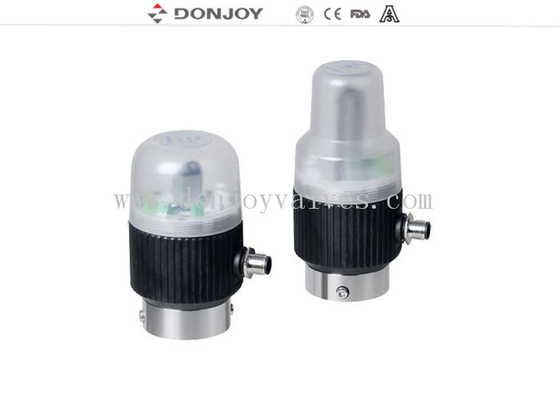

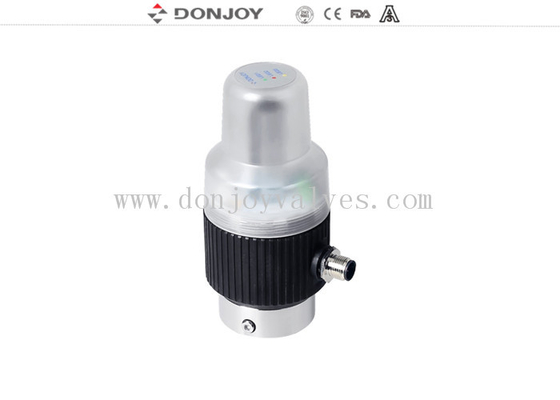

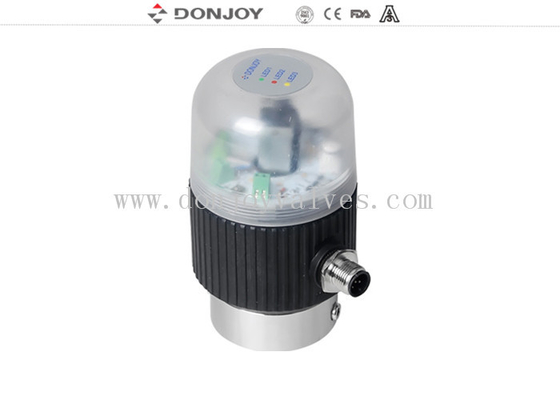

DONJOY High quality Intelligent valve Positioner F-top with a valve to control open and close also to feedback to PLC

Technical Feature

1.Feedback output:PNP DC24V& 4-20mA

2.power Supply: DC24V±10%

3.Accuracy: Repeat positioning accuracy≤0.%

4.Leakproof diagnostic Function

5.Display: three-section Light Color open: Green/Red, Close:red/Green

6.Strocke Range: 0-60MM/0-30MM

7.Middle position: yellow, suitable for mix proof valve

SPECIFICATION

Product Name	Intelligent valve positioner
Medium	Lubricated compressed air, inert gases
Max. Working temperature	70℃
Working pressure	1.5 bar - 7 bar (22PSI to 102PSI)
Connector	G1/8"
Level of protection	IP67
Stroke	Min. 3mm; Max. 70mm
Max. C - TOP units	31 C - TOP units
Connecting cable	2m
AS-I BUS	max. length: 1m
Operation mode	Pneumatic operation
Certificate	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO

Applications

F-TOP is pneumatic valve position feedback unit that is used for rotary motion. it's mainly designed for process position feedback of valve. It's compatible with most PLC automatic system. With digital communication or AS-I BUS Communication. It's used to control all kinds of processing valves by position feedback output, 3-section LED light display, Leakproof, et. It could be installed to various kinds of pneumatic valves, such as pneumatic butterfly valve, ball valve, globe valve etc which is in the rotary motion.

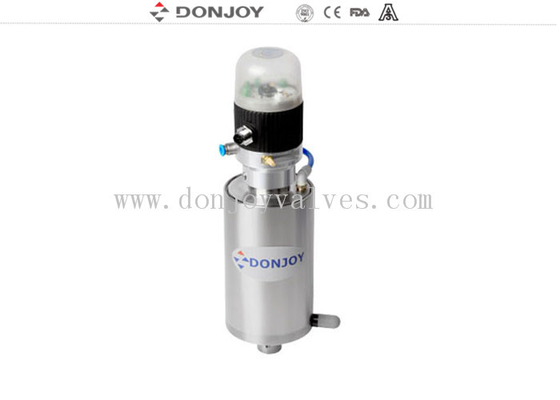

Installation

DONJOY High quality Intelligent valve Positioner feedback snart head F-top for pneumatic valve PNP DC24V 0

DONJOY High quality Intelligent valve Positioner feedback snart head F-top for pneumatic valve PNP DC24V 1
