DONJOY Top Quality ON/OFF Valve Auto Electrical DC24V Stainless Steel Intelligent Valve Positioner

Nama Merek:	DONJOY
Nomor Model:	IL-TOP-S
Jumlah Pesanan Minimum:	Negotiation
harga:	US $600 - 1,000 / Piece
Rincian kemasan:	carton box
Ketentuan Pembayaran:	T/T, LC, Credit Card

Informasi Rinci

Deskripsi produk

Informasi Rinci

Place of Origin:

CHINA

Sertifikasi:

CE,3A,FDA

Product Name:

Positioner

Pneumatic pressure:

4-7bar

Level of protection:

Feature:

Flow controller

Operation interface::

LCD display

Working pressure:

10bar

Menyoroti:

digital valve positioner

double acting positioner

Deskripsi produk

DONJOY Top Quality ON/OFF Valve Auto Electrical DC24V Stainless Steel Intelligent Valve Positioner

SPECIFICATION

Product Name	Intelligent Valve Positioner of Square Type
Power	DC.24V
Installation	Actuators of angular travel could be offered.
Work Pressure	10 bar
Pneumatic pressure	4-7 bar
Material	SS304 / 316
Working temperature	-10℃ ~ 130℃ (-10℃ ~ 150℃ for angle seat valve and globe valve)
Level of protection	IP67
Standard function	0/4-20mA to 0-5/10V signal input
Optional function	0/4-20mA, 0-5/10V position feedback output
Optional function	Device Net But Control
Operation interface	LCD display
Function	Flow control
Type	Square model

Function feature
Certification of explosion protection: EXD Ⅱ BT4
Level of protection: IP67
Signal input: 0-4/20mA, 0-5/10V
Signal feedback: 0-4/20mA, 0-5/10V
BUS protocol: DEVICE NET BUS

Technical feature
The control could be used as a positioner or process controller.
As a positioner, it could set the valve position according to set point.
As a process controller, MPU will be received the signal from control by comparing setting position value of valve with actual position of valve, through PIC control algorithm, process controller will drive the valve to the exact target positioner of valve.
The controller is composed of MPU, detection unit by controlling signal, position detector, LCD display, keyboard and piezoelectric valve etc..

Installation
The actuators of angular travel could be offered, such as butterfly valve, ball valve and the valves etc..
Specification: 1 inch - 12 inch, DN25 - DN200

Order information
IL-TOP-S Square Controller

Model	Feature	Position feedback	Description
IL-TOP-S-001-M	Positioner + Process control	4-20mA/0-5/10V	Single-acting
IL-TOP-S-002-M	Positioner + Process control	4-20mA/0-5/10V	Double-acting
IL-TOP-S-001	Positioner + Process control	NO	Single-acting
IL-TOP-S-002	Positioner + Process control	NO	Double-acting
IL-TOP-S-001-BUS	Positioner + Process control + BUS		Single-acting + BUS
IL-TOP-S-002-BUS	Positioner + Process control + BUS		Double-acting + BUS

IL-TOP-S Square Controller (Explosion Protection: EXD Ⅱ BT4)

Model	Feature	Position feedback	Description
IL-TOP-S-001-M-EX	Positioner + Process control	4-20mA/0-5/10V	Single-acting - Explosion levels
IL-TOP-S-002-M-EX	Positioner + Process control	4-20mA/0-5/10V	Double-acting - Explosion levels
IL-TOP-S-001-EX	Positioner + Process control	NO	Single-acting - Explosion levels
IL-TOP-S-002-EX	Positioner + Process control	NO	Double-acting - Explosion levels
IL-TOP-S-001-BUS-EX	Positioner + Process control + BUS		Single-acting, BUS - Explosion protection
IL-TOP-S-002-BUS-EX	Positioner + Process control + BUS		Double-acting, BUS - Explosion protection

Product display

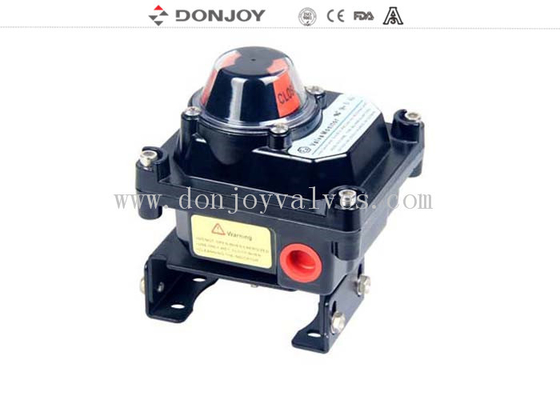

DONJOY Top Quality ON/OFF Valve Auto Electrical DC24V Stainless Steel Intelligent Valve Positioner 0

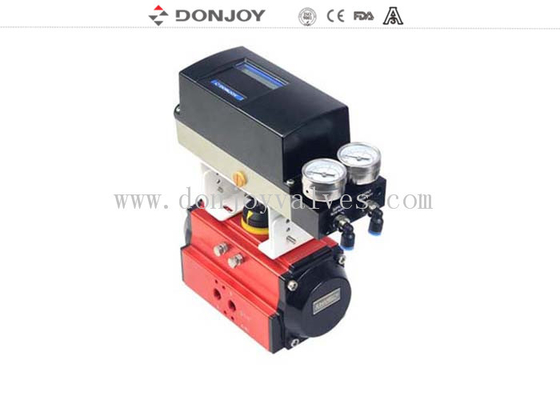

DONJOY Top Quality ON/OFF Valve Auto Electrical DC24V Stainless Steel Intelligent Valve Positioner 1

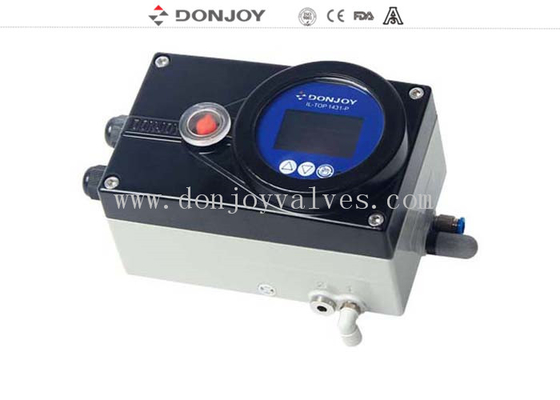

DONJOY Top Quality ON/OFF Valve Auto Electrical DC24V Stainless Steel Intelligent Valve Positioner 2
