Katup Diafragma Sanitasi

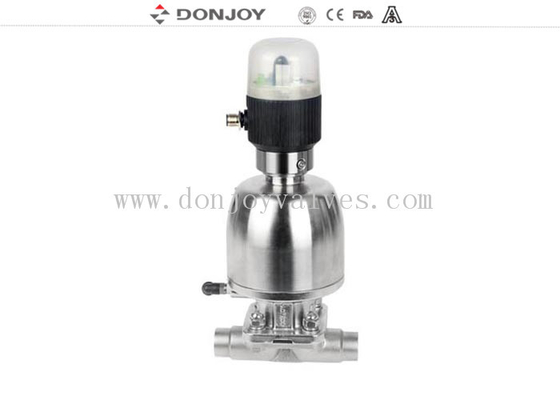

SS 316L Full Port Mini type Clamped diaphragm valve wtih F top( One sensor to feedback the position)

Semua Kategori

Kaca penglihatan baja tahan karat

Fitting Sanitasi Baja Tahan Karat

Hubungi Kami

Ms. Jasmine Zhuang

donjoy01@cndonjoy.com

86-18967799769

Hubungi Sekarang

SS 316L Full Port Mini type Clamped diaphragm valve wtih F top( One sensor to feedback the position)

Nama Merek:	Donjoy
Nomor Model:	NO.MINI - VGM0S1, NO.ZZ - K
Jumlah Pesanan Minimum:	Negotiation
harga:	Bisa dinegosiasikan
Rincian kemasan:	carton box
Ketentuan Pembayaran:	T/T, LC, Credit Card

Informasi Rinci

Deskripsi produk

Informasi Rinci

Place of Origin:

China

Sertifikasi:

CE,3A,FDA

Product Name:

welding mini diaphragm valve with ss handwheel

Valve body:

casting body/forging body

Size:

DN6-DN15

Single gasket:

EPDM

Operating way:

manual handwheel

Application:

dairy/ beverage/ pharmacy

Menyoroti:

diaphragm check valve

3 way diaphragm valve

Deskripsi produk

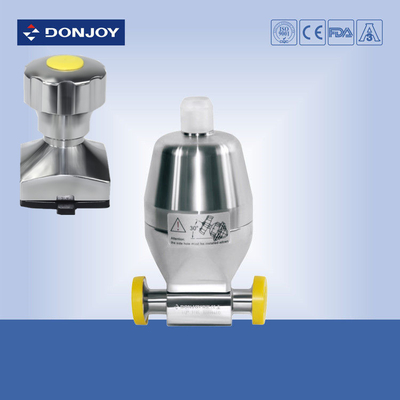

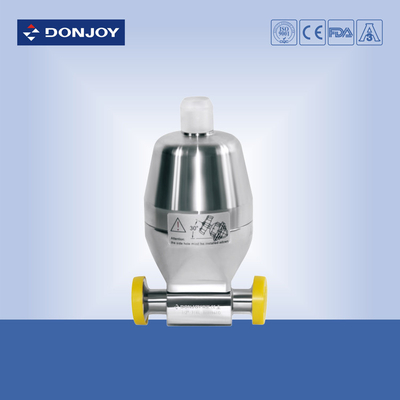

SS 316L Full Port Mini valve diaphragm with F-Top( One sensor to feedback the position)

Specifications

Product Name:	SS 316L Full Port Mini Diaphragm Valve with Stainless Steel handwheel 3/4" Welding Ends
Valve Body Material:	SS316L
Seal Material:	Single sillcone gasket/ Adhesive PTFE+EPDM/Two pieces PTFE+EPDM
MaxWorking Pressure:	8Bar
Max.WorkingTemperature:	150 degree C
Available size:	1/4”-3/4”, DN6-DN15
Available connection:	Clamp/weld/thread/special connection
Available standard:	3A/BPE/DIN/ISO/IDF
Operated:	Manual,Pneumatic
Available structure:	Straight, tee, U-type, tank bottom
Control:	Smart valve positionerIL-TOP / C-TOP control / position sensor
Certificate:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600
Application scope:	Dairy,food, beverage, pharmacy, cosmetic, etc
Optional:	Plastic cap on the outlets of valve
Actuator type:	Pneumatic with air input / output

Description
Various configuration of Diaphragm valve
Pneumatic Operation
1. Didaphragm valve with Positioner/Process Controller(IL-TOP)
2. Diaphragm valve with Control Unit(C-Top)
3. Valve position Regulator
4. Position Sensor Module
5. Stainless steel actuator
6. Plastic Actuator
Electric Operation
7. Electric Diaphragm valve
Manual Operation
8. Plastic Handle
9. Stainless steel handle

Valve Body Material
10. Body: Casting / Forging

Packaging Details
Bubble pack for each valve. Outside packing are carton or plywood cases.
Or as per the request of customers.

Delivery details
Usually within 20 days after receiving T / T down payment.

Mini - type diaphragm valve

SS 316L Full Port Mini type Clamped diaphragm valve wtih F top( One sensor to feedback the position) 0
