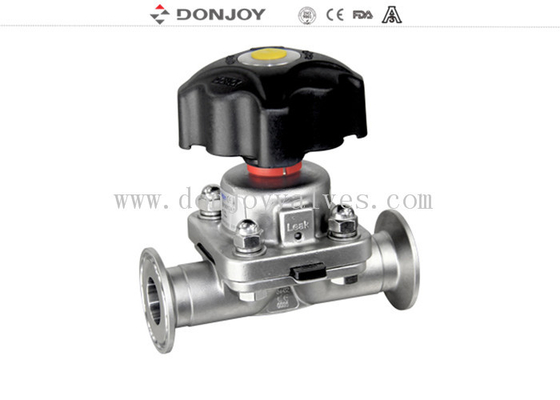

1 inch - 4 inch 316L Manual or Pneumatic Sanitary Diaphragm Valve with EPDM+PTFE

Nama Merek:	Donjoy
Nomor Model:	NO.ZZ-K
Jumlah Pesanan Minimum:	Negotiation
harga:	Bisa dinegosiasikan
Rincian kemasan:	carton box
Ketentuan Pembayaran:	T/T, LC, Credit Card

Informasi Rinci

Deskripsi produk

Informasi Rinci

Place of Origin:

China

Sertifikasi:

CE,3A,FDA

Product Name:

Manual or Pneumatic Sanitary Diaphragm Valve

Materials:

SS316L / 1.4404

Size:

1 inch - 4 inch, DN20-DN100

Connection:

Threaded ( BSP / BSPT / NPT ),clamp,weld

Gasket:

Sillcone / EPDM + PTFE / EPDM

Valve body:

Forging body , casting body

Manual:

SS hand wheel , plastic hand wheel

Pneumatic:

SS actuator , plastic actuator

Menyoroti:

sanitary sample valve

3 way diaphragm valve

Deskripsi produk

1 inch - 4 inch 316L Manual or Pneumatic Sanitary Diaphragm Valve with EPDM PTFE

Applications

Diaphragm valves, manually or pneumatically operated, are specifically designed for use on hygiene and aseptic processes in the pharmaceutical industries.

The valve is excellent for flow control as well as open/close control.

The diaphragm valves are better in feature of flow in comparison with other valves.

It is eaiser to clean up and better to process the substance with particles.

The phenomenon of air pocket is rare during application of flow control.

Specifications

Product Name:	1 inch - 4 inch 316L Manual or Pneumatic Sanitary Diaphragm Valve with EPDM PTFE
Valve Body Material:	SS316L
Seal Material:	Single sillcone gasket/ Adhesive PTFE+EPDM/Two pieces PTFE+EPDM
Max Working Pressure:	10Bar
Max.Working Temperature:	-30 to 130 degree C(plastic handwheel )
Available size:	1”-4” , DN20-DN100
Available connection:	Clamp / welding / thread / special connection
Available standard:	3A / BPE / DIN / ISO / IDF
Operated:	Manual,Pneumatic
Available structure:	Straight, tee, U-type, tank bottom
Material of hand wheel:	plastic and stainless steel are available
Positioner:	IL-TOP , IL-TOP-S positioner
Controller:	C-TOP controller
Certificate:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600
Application scope:	Dairy,food, beverage, pharmacy, cosmetic, etc

Valve Body:

Forging body blank is through a piece of stainless steel ingot, in the forging process, along with the hightemperature forging provide, through extrusion blank shape change, through the forging after bodydendity higher, the structure is more uniform, no sand hole and other impurities. Then through theprocessing center carry on the high precision machining.

Casting body is made by the mould paraffin wax model, paraffin wax model infiltratiion in ceramic, to let thewhole body wax mold surface form a layer of strong ceramic. Melt wax modl,then into the melting of thestainless steel solution, after cooling knock off the appearance of ceramic, blank body is made up.Casting size is very accurate, the outward apperance is smmoth, clean and tidy.

SS and Plastic Actuator

1 inch - 4 inch 316L Manual or Pneumatic Sanitary Diaphragm Valve with EPDM+PTFE 0

Product drawing (hand wheel)

Product drawing (pneumatic actuator)

Product display
