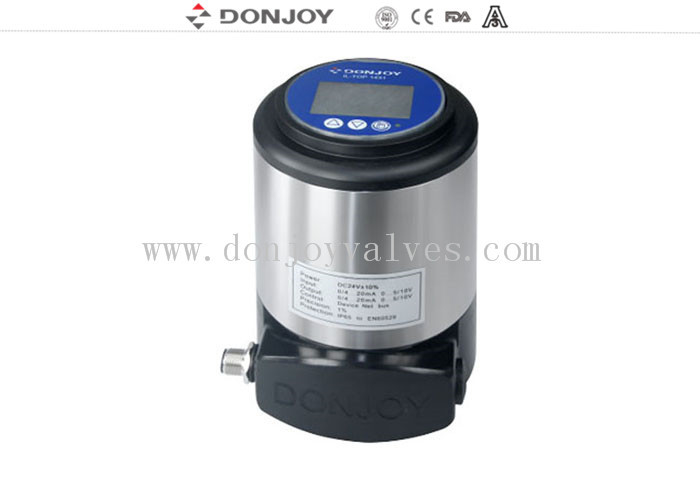

Product Name:	Intelligent electric reversing valve with valve positioner / controller
Valve Body Material:	SS304 / 316L
Seal Material:	EPDM (standard) FPM / SILICON / NBR, FDA177.2600
Available size:	DN25 - DN100
Available connection:	Clamp connection etc.
Available standard:	3A / DIN / SMS / RJT / ISO / IDF
Operated:	Electric power
Structure	With actuator
Certificate:	3A, CE, FDA, ISO
Feature:	bilingual menu
Structure:	With electric control unit

Model choosing table

Controller C-TOP 1421/1721 (Recommend version)
	Input control	Recommend actuator	Output signal
	1 solenoid valve	single acting pneumatic actuator	PNP 2 postiion 4-20mA
	2 solenoid valves	Double acting pneumatic actuator	PNP 2 position 4-20mA
	3 solenoid valves	for mixing proof valve	PNP 3 position 4-20mA
	3 Solenoid valves	for mixing-proof valve	PNP 4 position (including 1pc external sensor) 4-20mA

Controller C-TOP 1421/1721 (Bus protocol version AS-I BUS-V3.0)
	Input control	Recommend actuator	Output signal
	1 solenoid valve	single acting pneumatic actuator	PNP 2 postiion 4-20mA
	2 solenoid valves	Double acting pneumatic actuator	PNP 2 position 4-20mA
	3 solenoid valves	for mixing proof valve	PNP 3 position 4-20mA

Material

The material connected with others: AISI 316L / 1.4404

The material in other parts: AISI 304

Seal ring: EPDM FDA 177.2600

Internal surface finish: Ra ≤ 0.8μm

Pressure: 10bar

Packaging

Bubble pack for each valve.

Outside packing is carton or plywood cases.

Or as per the request of customers.

Structure

With electric control unit.

Operation

Electric power

Display

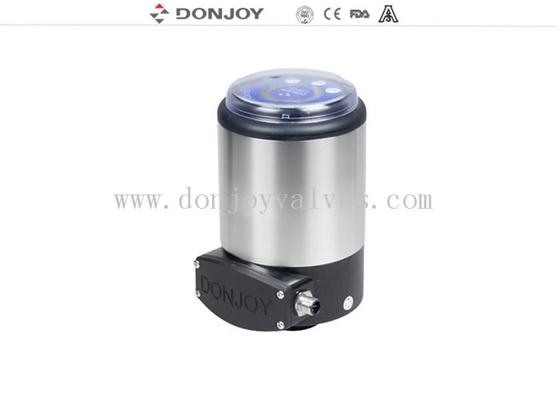

Intelligent Electric Reversing Pneumatic Valve Positioner 10 BAR Pressure 2

FAQ

Q1: Are you factory or trading company?
A1: We are factory. and we have all kinds of the products.

Q2: Where is your factory located? how can I visit there?

A2: Our factory is located in Wenzhou city, Zhejiang Province,China

Welcome you visit our factory for business negotiation. Please try to contact our staff first by email or telephone. we will make an appointment and arrange the pick up.

Q3: Can your factory print our brand on the product.

A3: Our factory can laser print customer’s logo on the products.

Q4: What is the Warranty for the products?
A4: 1 year,but not including quick-wear parts,like O-ring

Q5: Can we pay using Paypal for the samples? Does it cost extra ?

A5: Sorry we only accept TT.

Q6: Do you charge for samples or freight?

A6: According to our company policy, customers need pay for them, we will return sample charge to you in official order.

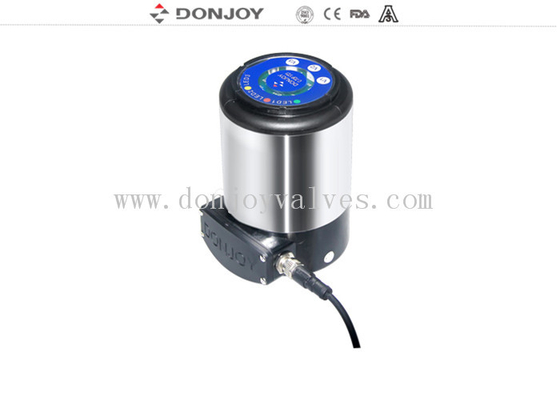

Intelligent Electric Reversing Pneumatic Valve Positioner 10 BAR Pressure 3

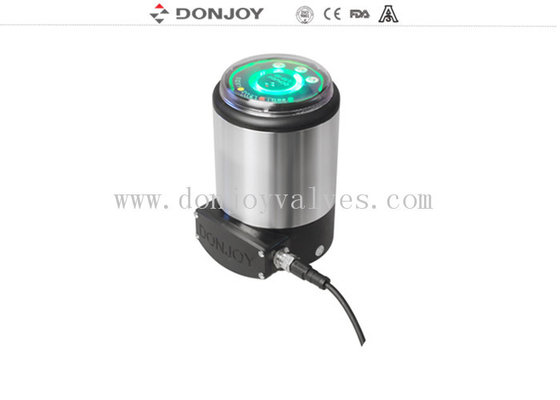

Intelligent Electric Reversing Pneumatic Valve Positioner 10 BAR Pressure 4
